Novatek HYDRA Tripod Stand – MWC200

Novatek HYDRA Tripod Stand for the HYDRA Water Cannon

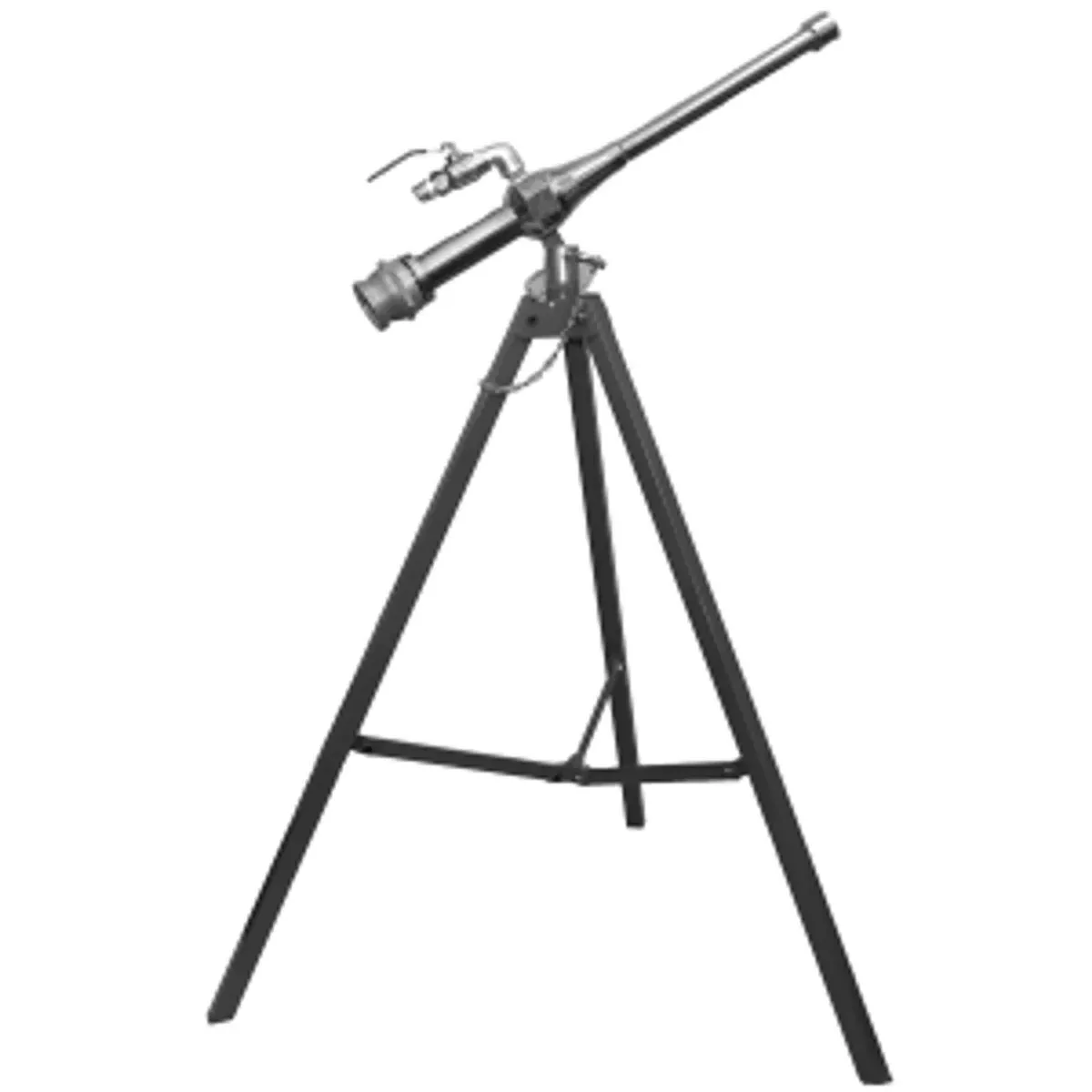

The Novatek HYDRA Tripod Stand (MWC200) is the mounting platform for the HYDRA Water Cannon. It holds the cannon at a fixed, aimable position so one operator can direct a 110 gallon per minute stream for rinsing, dust suppression, and washdown without bearing the full reaction force by hand. The locking legs set up on uneven ground, and a swivel mount with a locking pin secures the gun and lets it pivot across the work zone. The MWC200 is the stand only. The HYDRA Water Cannon gun is the MWC100, ordered separately.

What the MWC200 Stand Adds to the HYDRA

The stand carries the cannon so crews can run long rinsing and dust-knockdown sessions without holding the gun against a high-volume jet. Lockable legs give a stable base on graded or broken ground, and the swivel mounting pin lets the operator re-aim the stream while the platform stays planted.

• Holds the HYDRA cannon at a fixed height for hands-free aiming during long washdown runs.
• Locking legs set a stable platform on uneven demolition and excavation ground.
• Swivel mount with locking pin secures the gun and lets it pivot across the work area.
• Lets one operator manage the 110 gallon per minute stream that the cannon produces.
• Weighs 20 lbs (9 kg), so two crew members can reposition the full assembly between zones.
• Pairs with the MWC100 cannon through the cannon’s swivel mounting point.

MWC200 Applications and Environments

Use the tripod stand for dust suppression on demolition and excavation sites, where it holds the cannon aimed at the dust source while crews work nearby. It supports equipment and surface washdown by keeping the stream steady on a target, and at crushing and concrete sites it anchors the cannon for sustained dust control over a pad or stockpile.

Specifications

Documents

Manual
