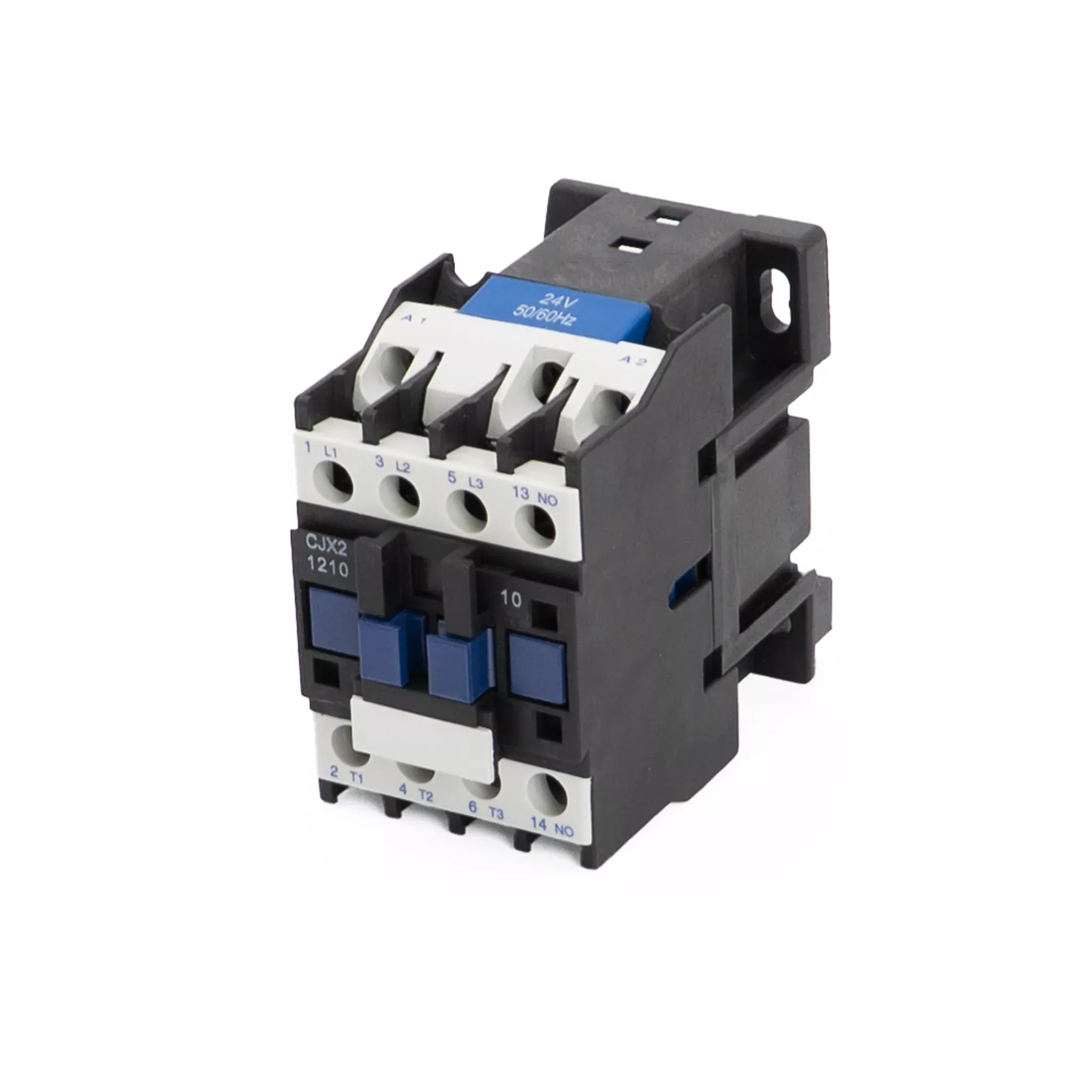

The Heschen CJX2-1210 AC Contactor is a compact, reliable, and efficient electromechanical switching device designed to control and protect three-phase AC motors and other electrical loads. Rated for use in industrial environments, this contactor supports frequent start-stop operations and is ideal for motor starters, HVAC equipment, conveyors, and other automation systems.
Key Features
-
Model: CJX2-1210
-
Brand: Heschen
-
Contact Configuration: 3 Pole + 1 Normally Open (3P+NO)
-
Rated Voltage: 690V AC (IEC 60947-4-1)
-
Rated Operating Current (Ie): 25A AC-3 @ 400V
-
Coil Voltage: 24V AC, 50/60Hz
-
Mechanical Life: 10 million operations
-
Electrical Life: 1 million operations
-
Mounting Type: DIN Rail and Screw Mount
-
Auxiliary Contact: 1NO (10)
Performance and Compatibility
-
High Breaking Capacity: The CJX2-1210 contactor features arc-resistant contact chambers and a strong electromagnetic system to ensure safe disconnection even under high loads.
-
Thermal Current (Ith): 25A
-
Utilization Category: AC-3
-
Typical Applications: Motor control, lighting circuits, resistive and inductive loads in machinery, packaging equipment, air compressors, and more.
Construction and Design
-
Housing Material: Flame-retardant thermoplastic with excellent electrical insulation properties.
-
Contact Material: Silver alloy for enhanced conductivity and arc resistance.
-
Operating Temperature: -5°C to +40°C
-
Mounting Compatibility: Designed for quick installation on DIN rails or flat surfaces.
Certifications
-
CE Certified
-
RoHS Compliant
-
IEC 60947-4-1 Standard Compliance
