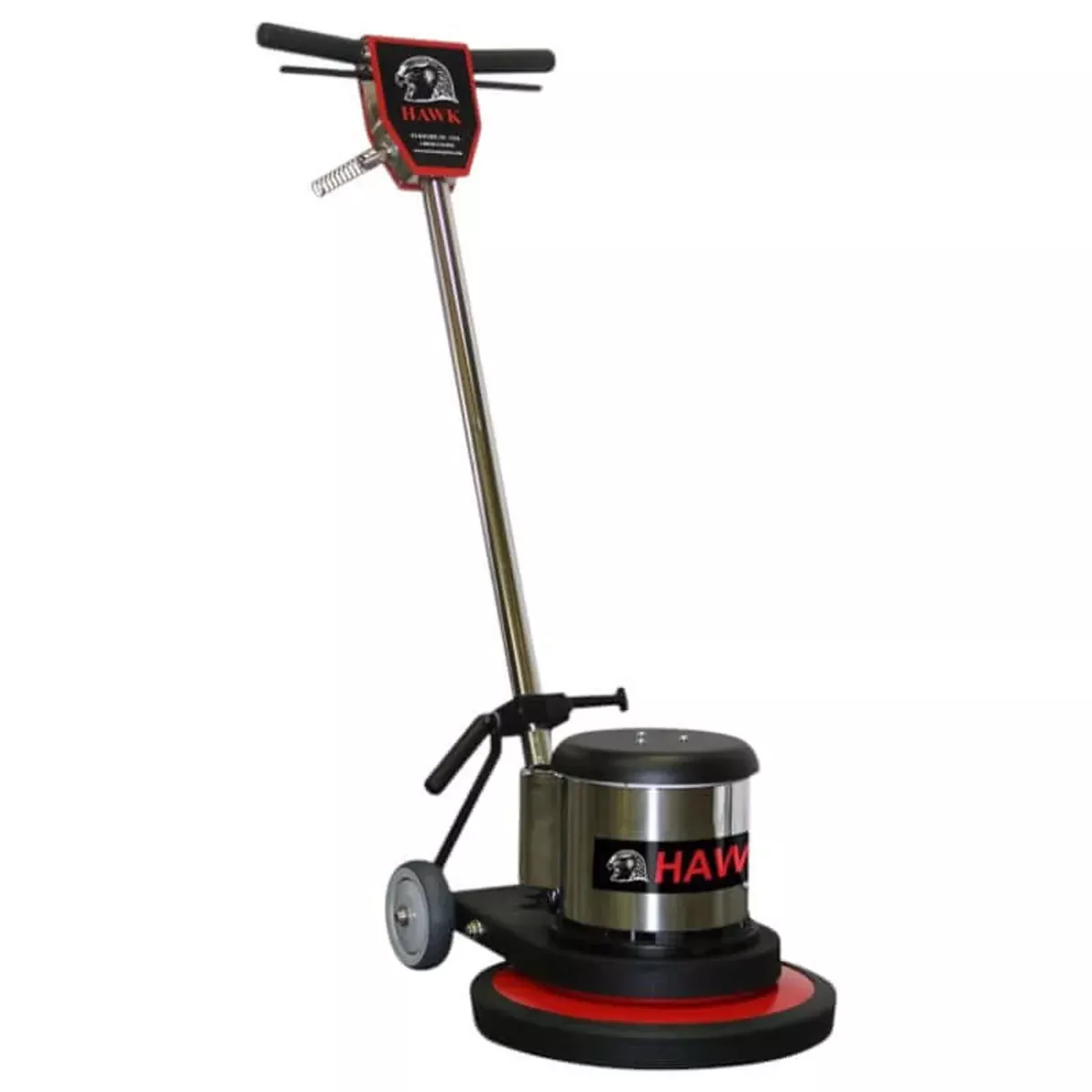

Hawk F30-01 20-Inch Extra Heavy Duty Floor Machine with Dual Capacitor Motor
The Hawk F30-01 runs a 1.5 HP dual capacitor motor at 165 RPM through a 20-inch pad, delivering 99 lbs of downward pressure for stripping, scrubbing, and spray buffing on commercial hard floors. The dual capacitor design improves starting torque and sustained performance under load compared to single-capacitor or shaded-pole motors—a meaningful difference when running black stripping pads through aged, multi-coat finishes.
F30-01 Dual Capacitor Motor, Pad Pressure, and Drive System
- Motor: 1.5 HP dual capacitor — two capacitors (start and run) provide high starting torque and steady RPM under sustained stripping load.
- Speed: 165 RPM — standard stripping and scrubbing speed; compatible with full range of 20-inch rotary pads.
- Weight: 99 lbs — delivers solid pad pressure without requiring ballast weights for standard stripping applications.
- Noise: 66 dB — meets occupied-facility noise requirements for daytime floor care operation.
- Pad size: 20 inch — accepts black, green, red, and white 20-inch rotary pads.
Floor Care Applications for the F30-01
The F30-01 handles the full range of hard floor maintenance work: stripping with black pads and chemical stripper, scrubbing with green pads and neutral cleaner, spray buffing with red pads and buffing solution, and finish application with white pads. At 99 lbs, it provides more pad pressure than lighter-class professional machines (typically 85–90 lbs) without reaching the 123–175 lb severe-duty weight class. This positions the F30-01 for facilities that need more stripping force than a standard professional machine delivers but don’t require the full severe-duty configuration of the Brute series—mid-range schools, retail chains, and healthcare outpatient facilities with quarterly strip-and-refinish schedules.
Dual Capacitor Motor Advantage at 165 RPM
Standard single-phase AC motors use one capacitor for starting and switch to a running configuration as RPM increases. Dual capacitor motors maintain separate start and run capacitors, keeping the run capacitor engaged throughout operation. This produces more even torque at operating speed and reduces the RPM drop that occurs when stripping pads encounter resistance from heavy finish. On a floor with 8 or more finish coats, a single-capacitor motor may drop 10–15 RPM under load; the F30-01’s dual capacitor motor holds closer to rated 165 RPM, producing more consistent stripping results across the cleaning path.
| Specification | Value |
|---|---|
| Model | F30-01 |
| Pad Size | 20 inch |
| Motor | 1.5 HP Dual Capacitor |
| Speed | 165 RPM |
| Weight | 99 lbs |
| Noise Level | 66 dB |
